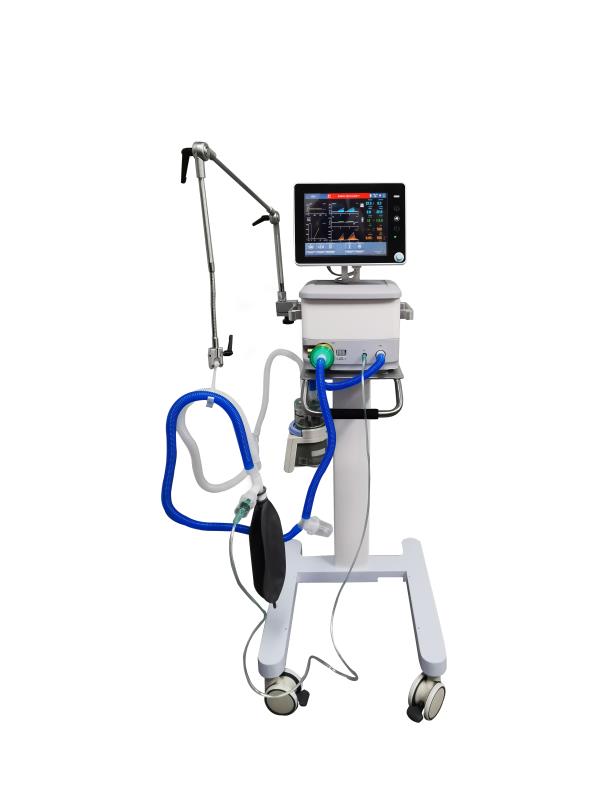

Veterinary ICU Ventilator
Please log in to see prices.
$0.00
Product Description

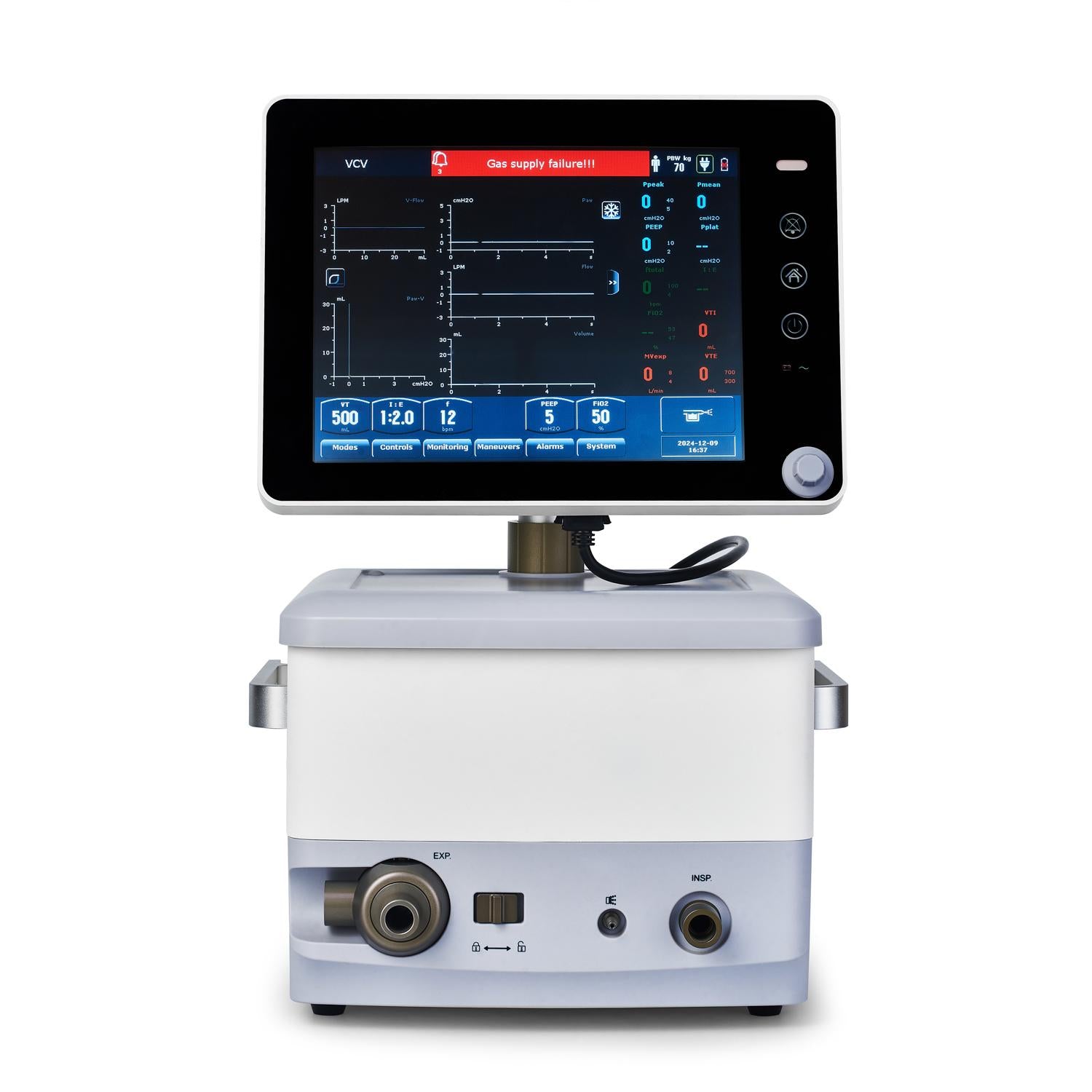

12.1" TFT with touch screen
Ventilation Mode: VCV, PCV, SIMV-VCV, SIMV-PCV, CAPA/PSV, APRV, BIPAP, PRVC (PCV-VG) (option), SIMV-PRVC (SIMV-PCV-VG) (option), NIV (Option), VS (option), Apnea back up ventilation (VCV, PCV)
Waveform: P-T, F- T, V-T, PV Loop, PF Loop, FV Loop
PEEP: Inner Electric PEEP
Inner Battery: Li-ion, work time more than 3 hours
Display: 12.1" TFT, with touch screen
Drive Gas: O2 and air, inlet pressure: 280-600kPa, max flows 120L/min.
Ventilation Mode: VCV, PCV, SIMV-VCV, SIMV-PCV, CAPA/PSV, BIPAP, APRV, PRVC (PCV-VG) (option), SIMV-PRVC (SIMV-PCV-VG) (option), NIV (Option), VS(option), Apnea back up ventilation (VCV, PCV)
Waveform: P-T, F-T, V-T, PV Loop, PF Loop, FV Loop
Battery Type: Li-ion, work time more than 3 hours
Ventilation Parameters:
Tidal Volume: 50-1500ml
Optional: 20-1500ml
Inspiration Pressure: 5-80cmH2O
Pressure Support: 0-80cmH2O
Respiratory Rate: 1-120bpm
Inspiratory Time: 0.1-12.0 S
Respiratory Ratio: 4:1 to 1:10
PEEP: OFF, 3-50cmH2O
FIO2: 21-100%
Flow Trigger: 0.5-20L/min with base flow
Pressure Trigger: 0-20cm H2O
Monitoring and Display Parameters:
Flow and Volume: TVi, TVe, MV, MVspont
Breath Rate: Total rate, Spontaneous rate
Pressure: Ppeak, Pmean, Pplat, PEEP, Pmin
I:E ration: I:E ratio
Respiratory Mechanics: P-V, F-V, P-F Loop
FiO2: 21-100%
Waveforms: P-T, F-T, V-T
SpO2 (Optional): Sp)2, Pulse, PI
Co2 (optional):EtCO2, FiCO2
Optional: CO2-T, Pleth
Alarm Parameters:
Respiratory Rate (high/low)
Minute Volume (High/Low)
Pressure (high/low)
VT (high/Low)
SpO2 (high/Low)
Apnea Time (0-60seconds)
FiO2 (high/low)
Gas Source Failure
Battery Discharged
Circuit Occlusion
Batter Low
O2 Supply Down
Air Supply Down
Mains Failure etc
