V1-100 Electro Surgical Generator
Product Description
Portable in size, with both monopolar and bipolar modes.
Technical parameters:
- Environmental temperature range: 5°C~ 40°C
- Relative moisture range: ≤80%
- Atmosphere pressure range: 86.0 ~ 106.0 Kpa
- Working modes: Pure cut: 1w ~ 60w (Load 500Ω)
- Blend: 1w ~ 60w (Load 800Ω)
- Coagulation: 1w ~ 60w (Load 1000Ω)
- Fulguration: 0.1w ~ 35w (Load 1000Ω)
- Bipolar: 1w ~ 30w (Load 200Ω)
Technology data:
- Voltage: 220V±10V, 50Hz ±1Hz
- Working frequency: 357 KHz ~ 575 KHz
- Leakage currents to ground: Less than 0.5mA
- Leakage currents to patient: Less than 0.01mA
Display Setting:
- Fulguration:
- a.0-10 range: 0.1watt increments
- b.10-35range: 1.0-watt increments
- Cut, Blend, Coagulation and Bipolar
- 1.0-watt increments
- Power supply:220V±10%,50±1%Hz.
Key Features
OBS-100 Electrosurgical Generator with state-of-art technology offers superb performance on the electro-surgery, and shows remarkable safety, reliability and convenience.
- Two levels of coagulation: pinpoint coagulation and fulguration
- Pinpoint coagulation provides precise control of bleeding in localized areas.
- Fulguration provides greater control of bleeding in highly vascular over surface areas.
- The unit incorporates as many as ten user-defined presets for easy recall of frequently and settings.
- lsolated RF output for Cut, Blend and Coag modes

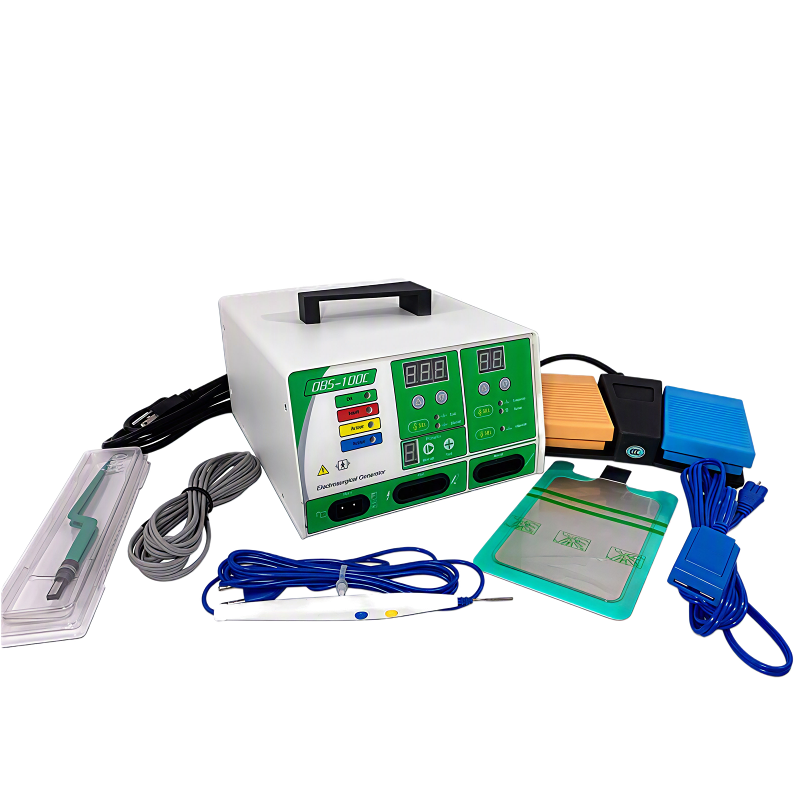

Supplied with Stater Kit
