Masimo SPO2, Suntech NIBP, ECG, Temp, Printer, 15" Touch Screen

Vitavue 15

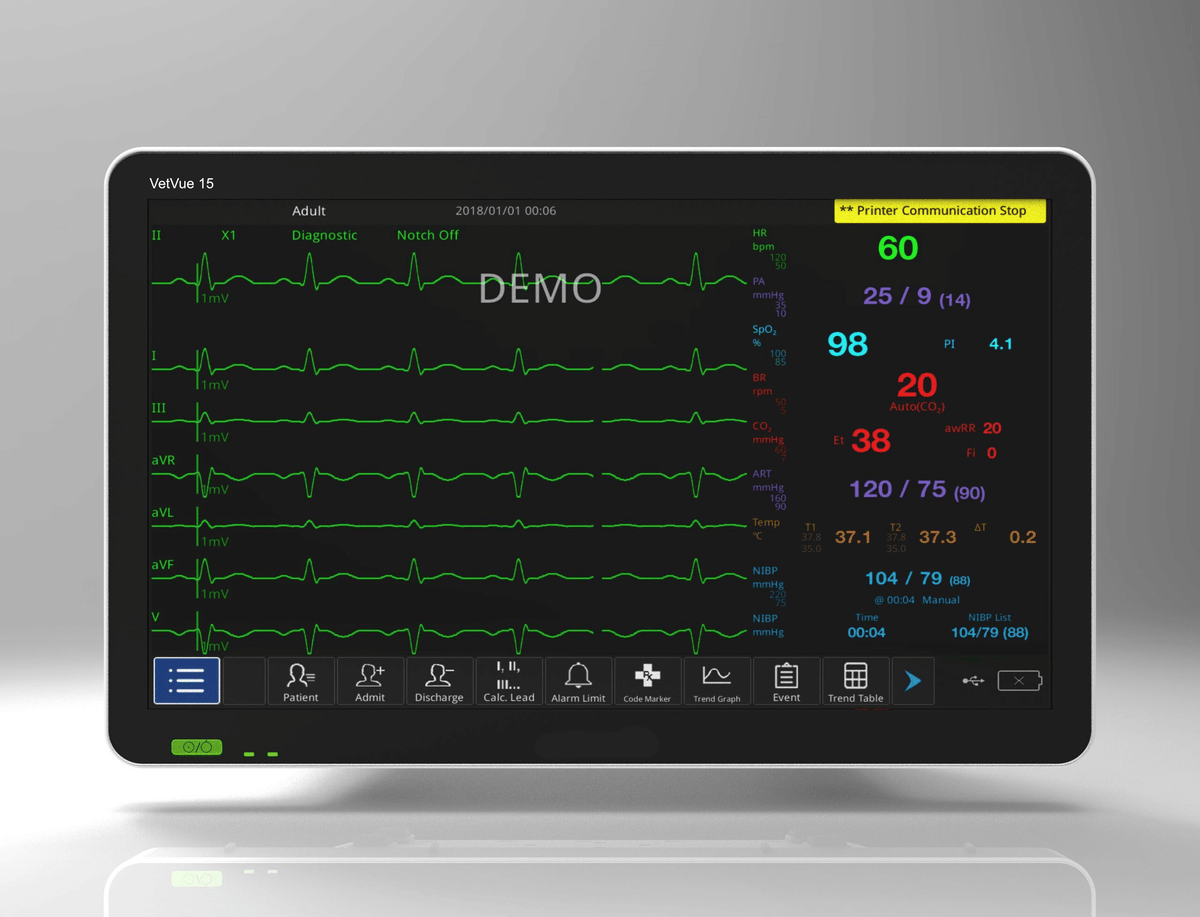

15″ Touchscreen MultiParameter Monitor

360 Degrees Alarm Light
Full brightness display from all angles

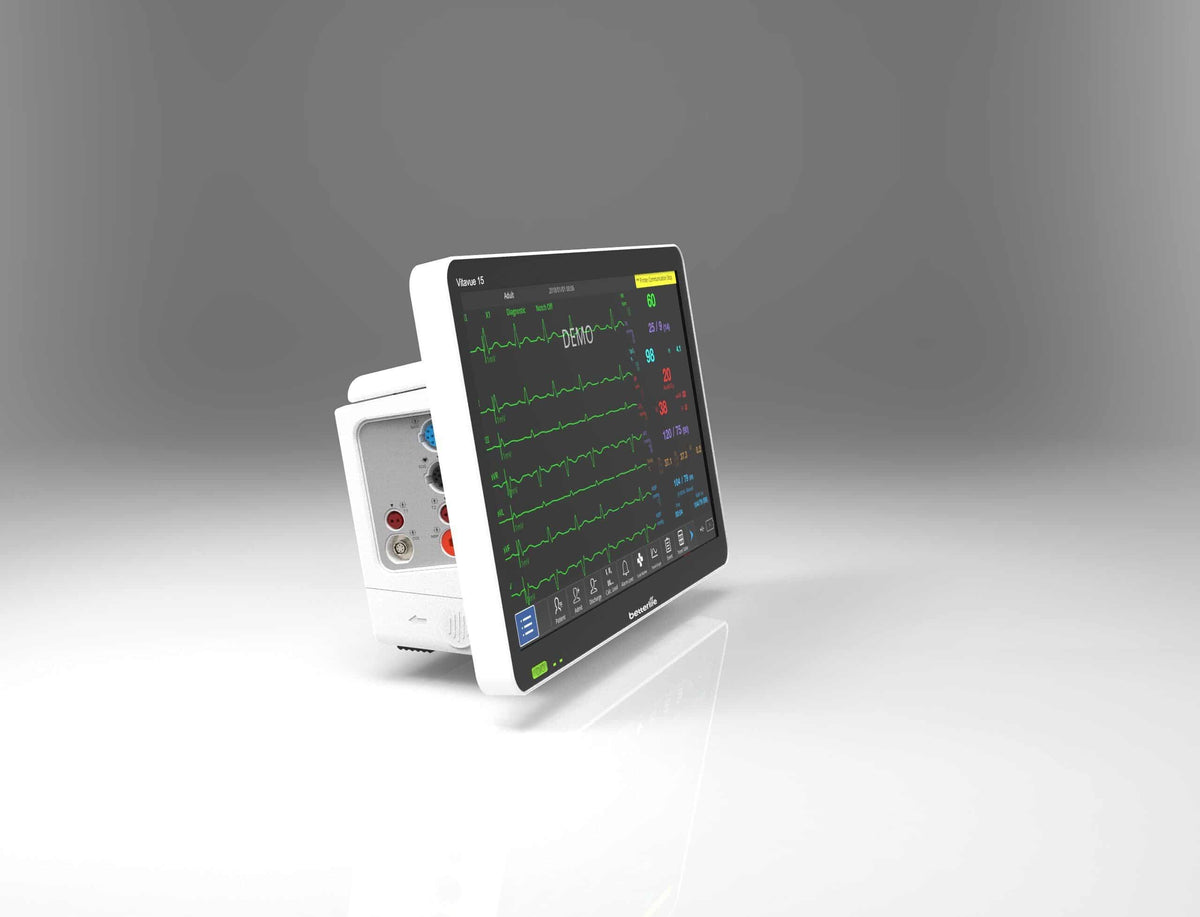

Compact Design
With an integral carry-handle
Modern, thin, light weight and portable

Rechargeable Lithium Battery
Support continuous working of 2 hours
(2600mAh), 4 hours (5200mAh)*

Instant Upgrades and Maintenance

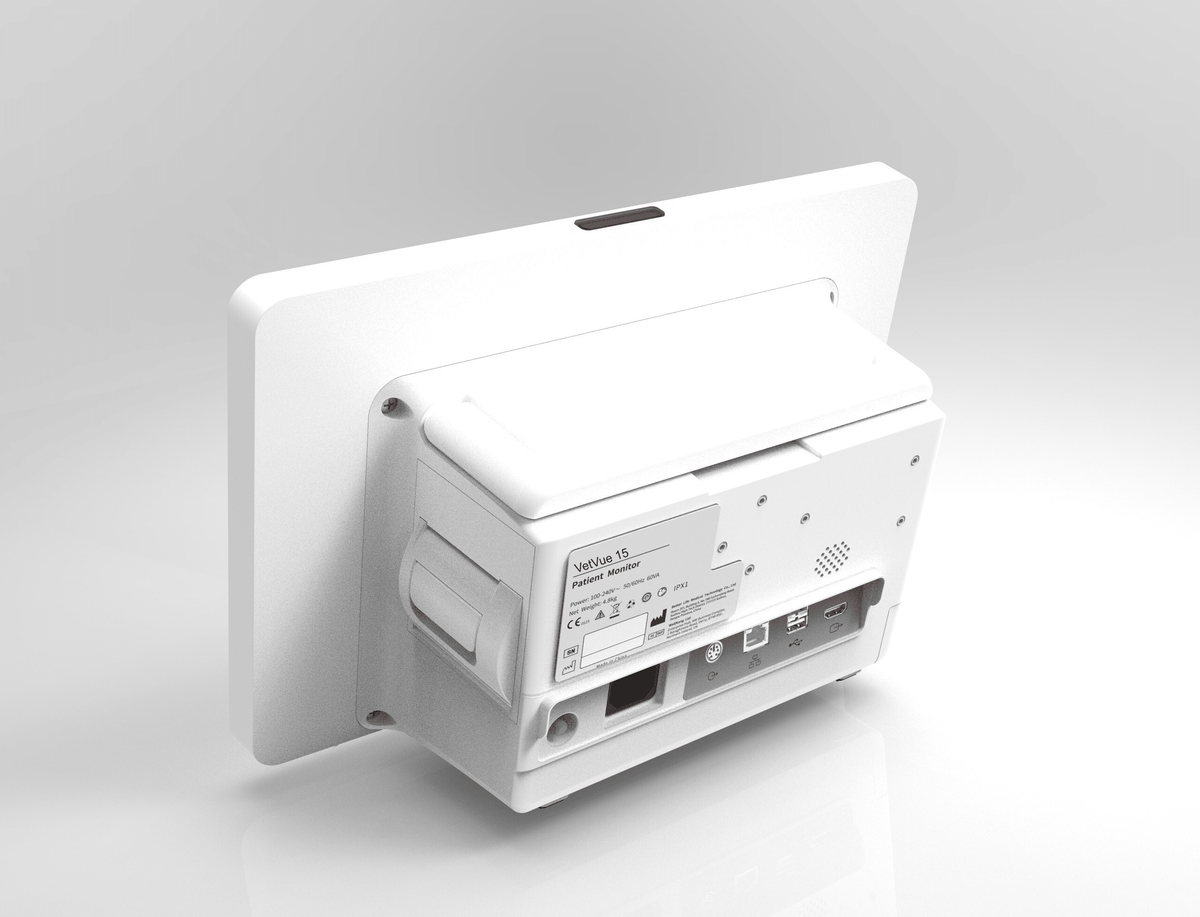

Optimized structural design for USB/HDMI ports
For quick and easy data transfer, software upgrade,
screen sharing, and nurse call station connections

Colour TFT Display 15.1”
1280X800mm high resolution
170 degrees wide angle view
Anti-glare and flicker free technology with 10 levels of night modes
Deliver the best visual experience
Sweep speed 6.25, 12.5, 25, 50 mm/sec

Hassle Free Touch Screen
Seamless all-screen design with extra slim bezels
Easy to clean, water and dust proof
Access all functions intuitively in just one touch
Easy to operate

Powerful Data Storage
480 hours full-disclosure review
168 hours of tabular and graphic trends
4000 sets of data
100+ alarm events
Code marker function to locate specific clinical data for enhanced decision making

SpO2 Algorithm
Outstanding motion resistance and interference resistance performance.
Real time perfusion index and low perfusion detection.

3/5/12 Leads ECG
Optimized for arrhythmia detection, pacemaker detection and HR measurement.
3 kinds of filtering mode: diagnosis, monitoring and operation.

Arrhythmia analysis (ST segment included)
Asystole、Pause、VFIB/VTAC … 23 arrhythmias can be analyzed

Main-stream and Side-stream EtCO2
World class main-stream and side-stream EtCO2 technology, especially accurate for micro-stream situation
Up to 150 RPM detection for patients with weak respiration and high respiratory rate.

NIBP Module
Designed for cardiac patients, hypertensive patients, and neonatal patients.

Dual CPU and overpressure protection.
Provides 10 automatic measurement time/ pre-inflation pressure settings.
Supports air leakage detection, pressure calibration and pressure zero function.

Configurable Interface
Host up to 8 traces
Modules can be set up simply by clicking on the data segment.
Maximize the efficiency of clinicians.
Customizable hot keys to conveniently access frequently used functions.

Vitavue 15 Multi-Parameter Veterinary Monitor
