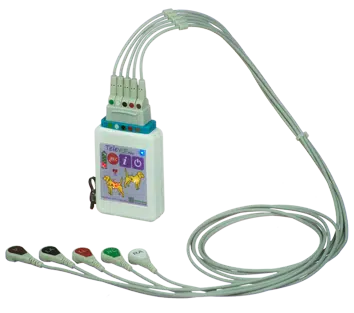

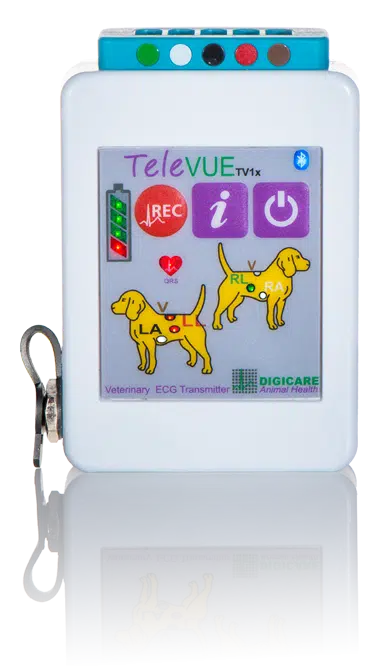

Digicare’ s TeleVue TV1x is a portable ultra-small transmitter that measures 3/5 lead ECG and stays with your patient, sending vital signs data through Bluetooth technology to a PC up to 300ft away with the option to extend this to 1000ft. The TeleVue software will generate both Excel and PDF reports of tabular data and includes a 48 hour ECG recorder that offers full disclosure printing

Designed and Manufactured in the U.S.A

Technical Specifications

Available Measurements

3/5 Lead Digicare™ VetECG™

Features

Standard Leads: I, II, aVR, aVL, aVF. Vx
Multi-Lead ECG Displays 6 Vectors
Lead Detection Identifies Failed Leads
BPM Range: Small 5-350bpm, Large 10-300bpm
Wireless Range up to 100m
Transmission Safe and Interference Free
Full Reports and EKG Printouts
Rechargeable Battery
Weight – 100g
Battery – Up to 15 hours
Relative Humidity – 30 to 75% (non-condensing)
Main Voltage – 240V AC (50/60 Hz)
Battery – Internal Li-ion Rechargeable Battery @ 1200mA/h
FCC Approved ISM Band
Dimensions – 50mm (W) x 76mm (H) x 20mm(D)
Safety – Meets IEC601-1-1 and IEC 601-1-2

Digicare TeleVue TV1x (Model) TV1x-E 5 Lead Ecg includes 1 x vest transmitter
